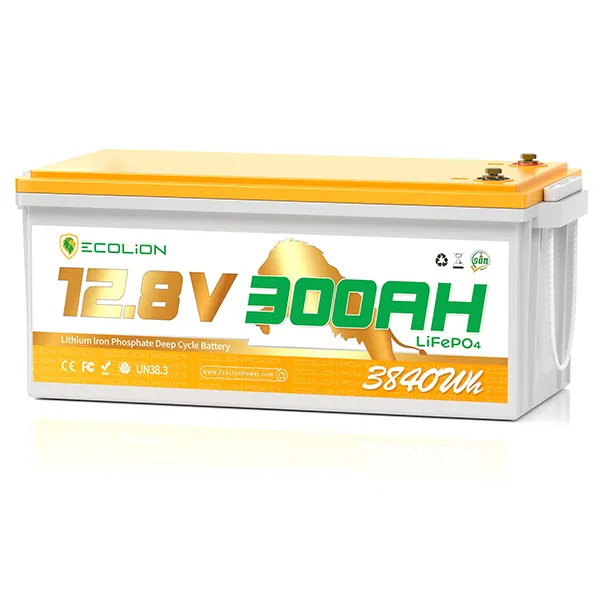

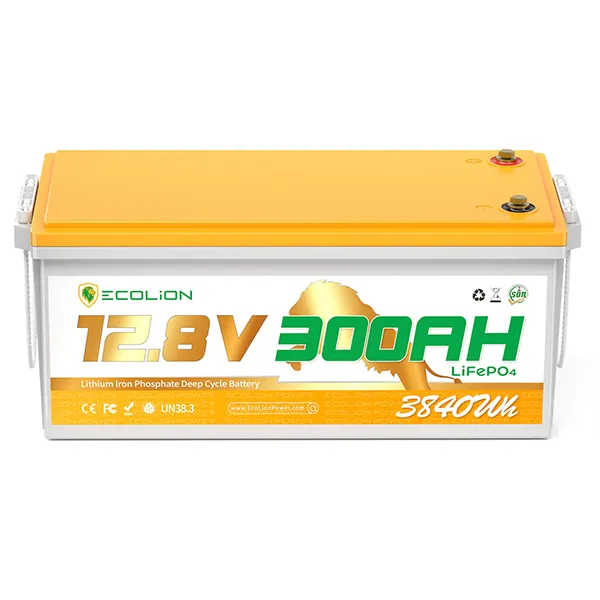

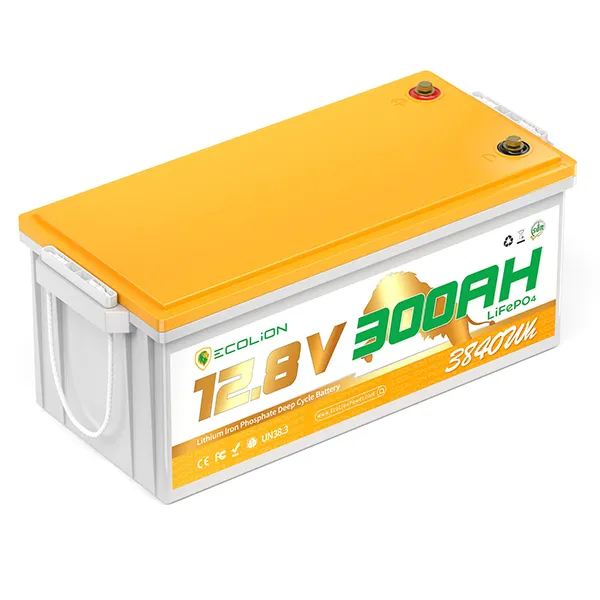

Lead-acid To Lithium LiON-12.8V 300Ah
Environmental upgrade
Transitioning from lead-acid to lithiym batteries reduces environmental impact and enhances energy utilization efficiency.
Increased charging efficiency
Fast charging capabilities shorten waiting times and improve user convenience.
Extended lifespan
Lithium batteries have a longer cycle life, reducing the frequency of replacement and saving costs.
Technicle Specifications
| Battery Type | LiFePO4 LiFePO4 LiFePO4 | |
| Cell Configuration | 4S1P 4S1P 8S1P | |
| Nominal Energy | 3840Wh 4224Wh 3840Wh | |
| Nominal Capacity | 300Ah 330Ah 150Ah | |
| Nominal Votage | 12.8V 12.8V 25.6V | |
| Working Voltage Range | 10~14.6VDC 10~14.6VDC 20~29.2VDC | |
| Max.Charge/ Discharge Current | 150/210A 150/210A 75/120A | |
| Dimension[L*W*H] | 522*240*218mm | |
| Packing Dimension [L*W*H] | 675*350*340mm | |
| Weight | 25.9Kg 25.2Kg | |
| Packing Weight | 27.6Kg 26.9Kg | |
| Working Charge Temperature | 0～55℃ | |
| Working Discharge Temperature | -20～60℃ | |
| Cycle Life | ≥6000 Cycles@80%-DOD) | |
| Dispaly Screen | Customizable | |
| Scalability | Maximum 4 batteries in series | Maximum 2 batteries in series |
| Relative Humidity | 0~95%,no condensation | |
| Warranty | 5years | |
| Installation Type | Portable | |
| IP Rating | IP55 | |
| Certification | CE FCC ROHS WEEE UN38.3 MSDS SONCAP | |
