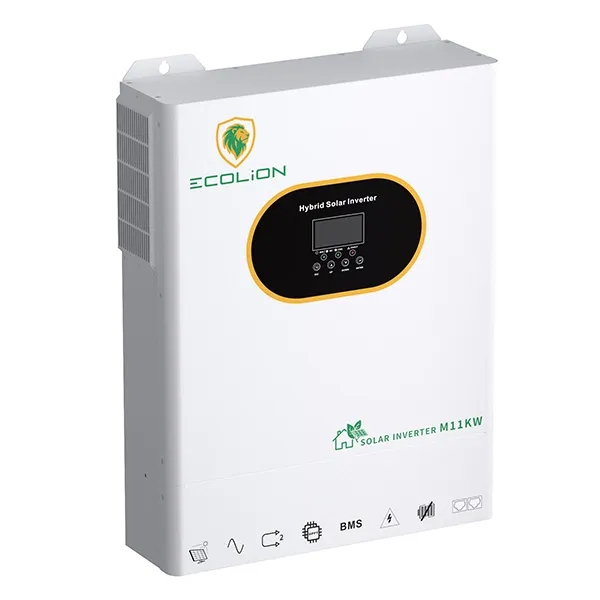

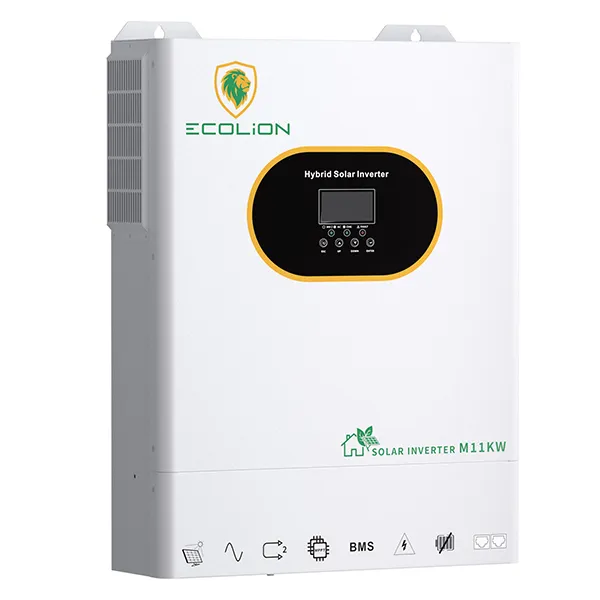

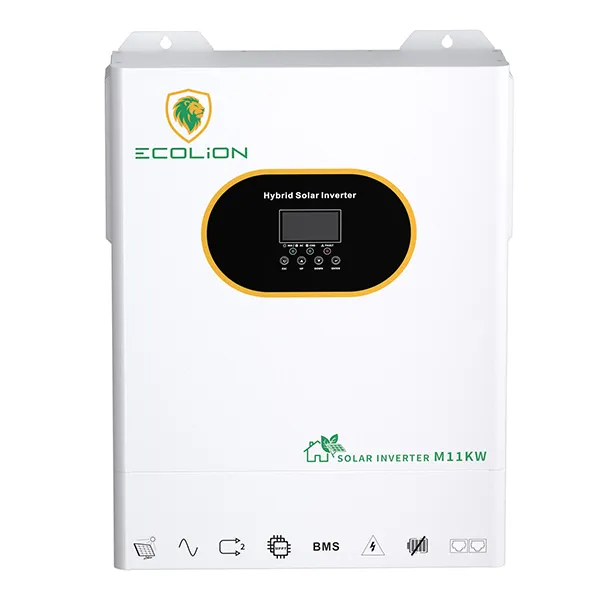

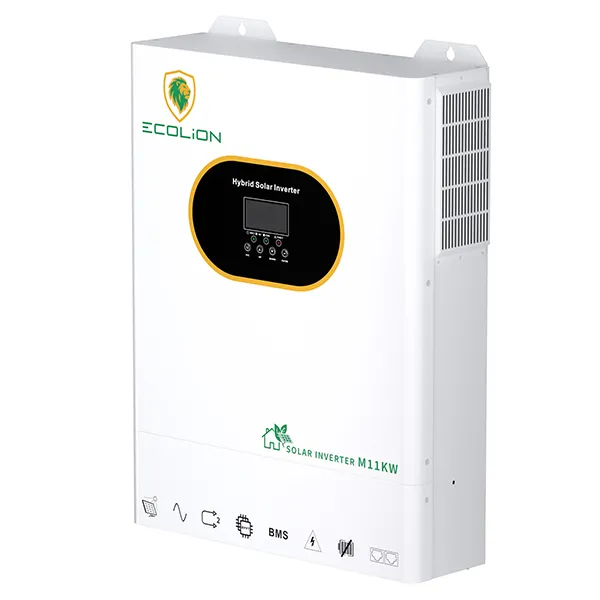

Off-grid Inverter ECOLiON-M11KW
- Dual AC output
- Built-in 2 MPPT
- Parallel max up to 6 units
- Lithium battery activation function by PV or Utility
- Compatible work with LiFePO4 battery via RS485
- Pure Sine Wave
- Powerfactor 1.0
- PVInput 500Vdc Max
- Built-in MPPT 160A”Capable to work without battery
- Detachabledust cover for harsh environment
- WiFi remote monitoring optional
- Support multiple output priority: SUB, SBU.SUF
- EO function to optimize battery performance andext end lifecycle
Technicle Specifications
| CAPACITY | 11KVA/11KW |
| Maximum PV Input Power | 11KW |
| Twin AC Output Function | YES |
| Maximum Main Output Power | 11KVA/11KW |
| Maximum Second Output Power | 5.5KVA/5.5KW |
| Maximum Total Output Power | 11KVA/11KW |
| Parallel Capability | YES,6units |
| Lithium Battery Communication | YES(RS485) |
| Lithium Battery Activation | YES(By PV or Utility) |
| Built-in WiFi | Optional |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) |
| Frequency | 50/60Hz(Auto sensing) |
| Nominal Voltage | 220/230/240VAC |
| Surge Power | 22000VA |
| Frequency | 50/60 Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency(PV to INV) | 96% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload Protection | 5s@>=140%load;10s@110%~140%load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1(inductive or capacitive) |
| Battery Voltage | 48VDC |
| Maximum Discharge Current | 220A |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC/CV |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 5500W*2 |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~500VDC |
| Max.Solar Input Current | 18A2 |
| Max.Solar Charge Current | 160A |
| Max.AC Charge Current | 120A |
| Max.Charge Current | 160A |
| Dimensions,DxWxH | 540*415*122mm |
| Net Weight | 15.5Kg |
| Communication Interface | RS232/RS485/DRY CONTACT |
| LCD | YES |
| Operating Temperature Range | (-10℃ to55℃) |
| Storage temperature | (-15°℃~60°℃) |
| Humidity | 5%to 95%Relative Humidity(Non-condensing) |
| Ingress Protection | IP21 |
