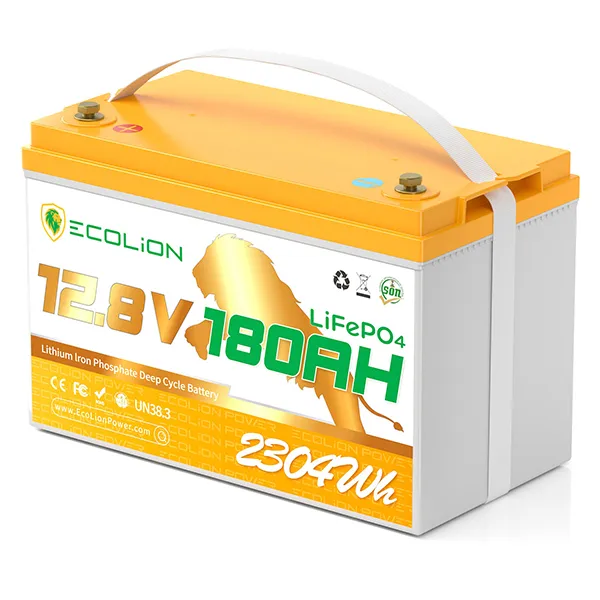

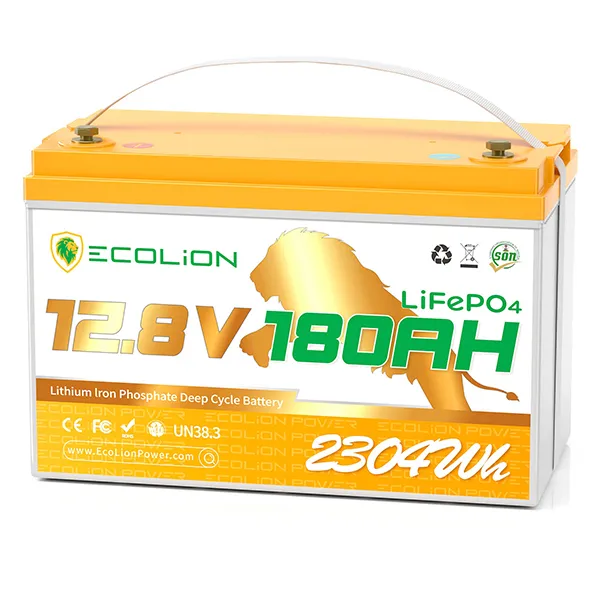

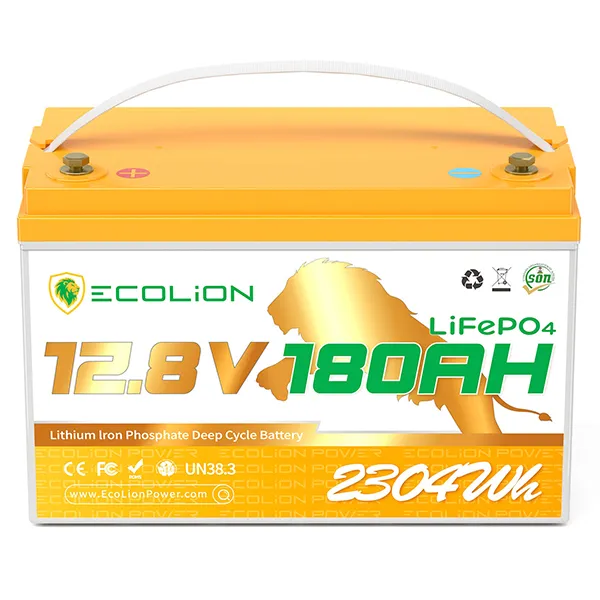

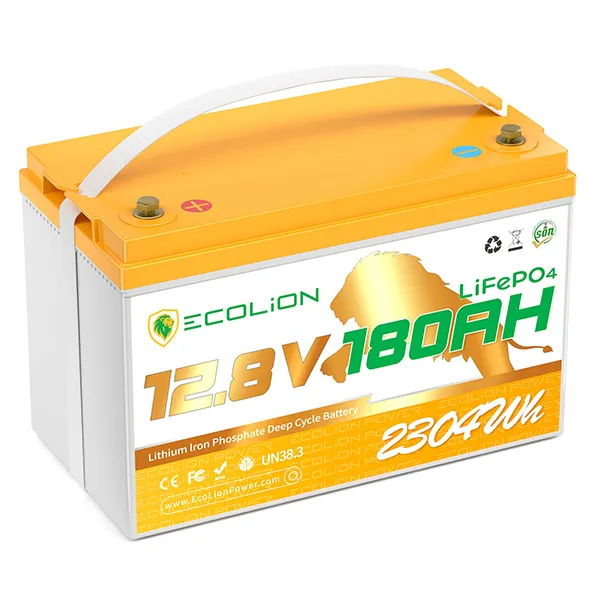

Lead-acid To Lithium LiON-12.8V180Ah
Environmental upgrade
Transitioning from lead-acid to lithiym batteries reduces environmental impact and enhances energy utilization efficiency.
Increased charging efficiency
Fast charging capabilities shorten waiting times and improve user convenience.
Extended lifespan
Lithium batteries have a longer cycle life,reducing the frequency of replacement and saving costs.
Technicle Specifications
| Battery Type | LiFePO4 |
| Cell Configuration | 4S1P |
| Nominal Energy | 2304Wh |
| Nominal Capacity | 180Ah |
| Nominal Votage | 12.8V |
| Working Voltage Range | 10~14.6VDC |
| Max.Charge/ Discharge Current | 50/120A |
| Dimension[L*W*H] | 333*176*217mm |
| Packing Dimension [L*W*H] | 592*310*293mm |
| Weight | 14.6Kg |
| Packing Weight | 16Kg |
| Working Charge Temperature | 0～55℃ |
| Working Discharge Temperature | -20～60℃ |
| Cycle Life | ≥6000 Cycles@80%-DOD) |
| Dispaly Screen | Customizable |
| Scalability | Maximum 4 batteries in series |
| Relative Humidity | 0~95%,no condensation |
| Warranty | 5years |
| Installation Type | Portable |
| IP Rating | IP55 |
| Certification | CE FCC ROHS WEEE UN38.3 MSDS SONCAP |
