LiFeP04 Battery System E51.2V342AH
Environmental upgrade
The lithium iron phosphate material itself has a very high decomposition temperature(usually above 250℃, much higher than the 180-200℃ of ternary materials), and is not easy to get out of control (fire,explosion) under extreme conditions such as high temperature, overcharging, and short-circuit.
Extremely long cycle life
High cycle times: LiFePO4 batteries can easily achieve more than 6000 full charge/discharge cycles (80%DOD).
Good high temperature performance
LiFePO4 batteries degrade more slowly at higher temperatures (e.g.40-60℃)and cycle life is less affected. This is an important advantage for home energy storage systems installed in attics,garages or hot climates.
Technicle Specifications
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Operating Voltage | 40-58.4V |
| Recommend Discharge Current[1] | ≤170A0.5C |
| Recommend Discharge Power[1] | ≤8704W |
| Maximum Charge/ Discharge Current | 170A/210A |
| Depth of Discharge | ≥95%DOD |
| Cycle Life[2] | ≥6000 Cycles@80%-DOD) |
| Charging Temperature Range | 0-55℃ |
| Discharging Temperature Range | -20-60℃ |
| Scalability | up to 6 units in parallel(105kwh) |
| Communication | RS485/CAN |
| Protection Level | IP55 |
| Display | LED/LCD/Customizable |
| Installation | Floor-Mounted |
| Protection | Built-in smart BMS,Breaker, |
| Warranty | 5 Years |
| Net Weight | 123kg |
| Gross Weight | 144kg |
| Product Dimension | 445*260*795mm |
| Package Dimension | 1009×577x498mm |
| [1]Recommend charge/discharge current power is affected by temperature and soC. | |
| [2]Test conditions:0.2c Charging/Discharging @25℃,80%DOD. | |
Get Free Quote of LiFeP04 Battery System E51.2V342AH

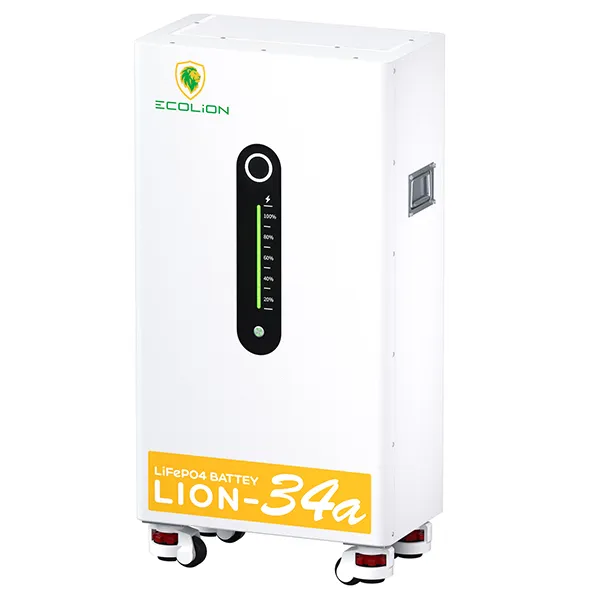

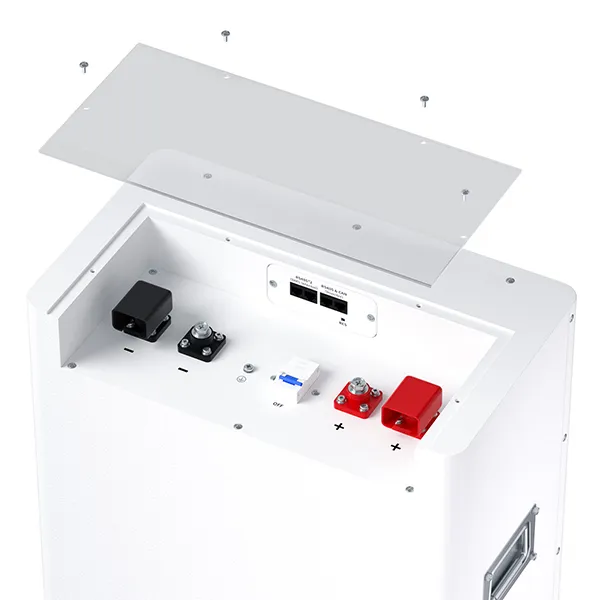

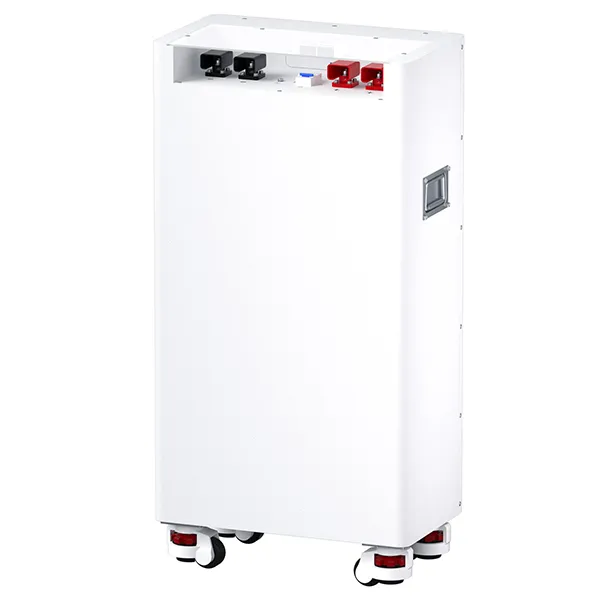

LiFeP04 Battery System E51.2V342AH Detail Display
