LiON-108 N-type(182mm Cell) 430-450 Watt
Industry-leading Warranty based on nominal power
- 0.4% Annual Degradation over 30 Years
- 12 Year Product Warranty
- 30 Year Linear Power Warranty
Features
- SMBB Technology
Better light trapping and current collection to improve module power output and reliability. - Hot 2.0 Technology
The N-type module with Hot 2.0 technology has betterreliability and lower LID/LETID. - Excellent weak light performance
More power output in weak light condition, such as cloudy,morning and sunset - Extended wind and snow load tests
Module certified to withstand extreme wind (2400 Pascal)and snow loads (5400 Pascal) - PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. - Lower LCOE
Higher bifaciality,higher power output and lower BOS cost

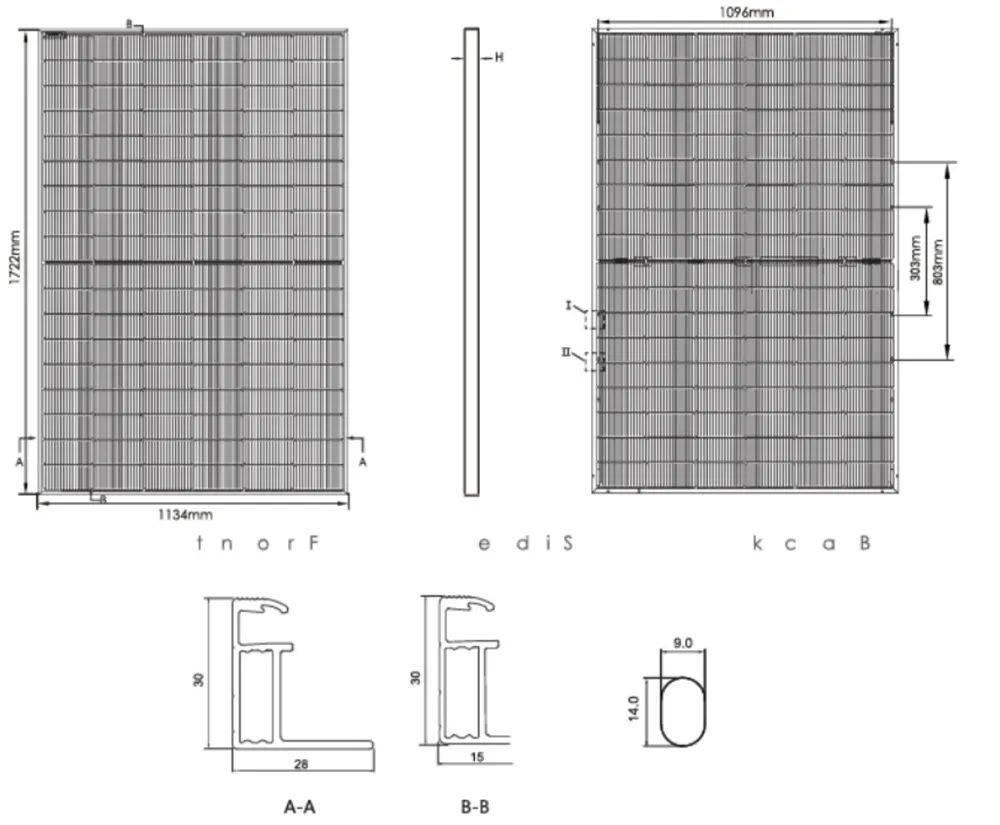

MECHANICAL SPECIFICATIONS
| Cell Type | N type Mono-crystalline |
| Cell Arangement | 108(6*18) |
| Weight | 24.5KG |
| Module Dimensions | 1722*1134*30mm |
| Cable Length | 4.0mm²,±300mm or Customized length |
| Front Glass | 2.0mm,Anti-Reflection Coating |
| Back Glass | 2.0mm,Heat Strengthened Glass |
| No.of Bypass Diodes | 3/6 |
| Packing Configuration | 36pcs/pallet,936pcs/40HQ |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 |
ELECTRICAL SPECIFICATIONS
| Module Type | N | KM430N-108BDM10 | NKM435N-108BD | M10 NKM440N-108BDM | 10 NKM445N-108BDM | 0 NKM450N-108BDM10 | |
| Testing Condition | STC | NMOT | STC NMOT | STC NMOT | STC NMOT | STC | NMOT |
| Rated output(Pmpp) | 430 | 326 | 435 330 | 440 334 | 445 339 | 450 | 343 |
| Maximum Power Voltage(Vmpp/V) | 32.3 | 30.3 | 32.5 30.5 | 32.7 30.7 | 32.9 30.9 | 33.1 | 31.1 |
| Maximum Power Current(ImpplA) | 13.31 | 10.74 | 13.38 10.82 | 13.46 10.89 | 13.53 10.96 | 13.6 | 11.03 |
| Open Circuit Voltage(VocN) | 38.3 | 36.6 | 38.4 36.8 | 38.6 37.0 | 38.8 37.2 | 39 | 37.4 |
| Short Circuit Current(Isc/A) | 14.12 | 11.38 | 14.18 11.43 | 14.25 11.48 | 14.32 11.53 | 14.39 | 11.58 |
| Module efficiency(%) | 22.00% | 22.30% | 22.50% | 22.80% | 23.00% | ||
| Power Tolerance (W) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 | ||
STC: Iradiance 1000W/m2, Cell Temperature 25℃, Air Mass AM1.5 NMOT: Iradiance at 800Wm2, Ambient Temperatue 20℃, Air MassAM1.5, Wind Speed 1m/s
Get Free Quote of LiON-108 N-type(182mm Cell) 430-450 Watt
Electrical Characteristics with Different Rearside Power Gain(Reference to 440 W Front)
| Pmax/W | 462 | 484 | 506 | 528 | 550 |
| VmpplN | 32.7 | 32.7 | 32.7 | 32.7 | 32.7 |
| Impp/A | 14.13 | 14.8 | 15.48 | 16.15 | 16.83 |
| VocN | 38.6 | 38.6 | 38.6 | 38.6 | 38.6 |
| Isc/A | 14.96 | 15.68 | 16.39 | 17.1 | 17.81 |
| Pmax gain | 5% | 10% | 15% | 20% | 25% |
MAXIMUM RATINGS
| Maximum System Voltage | 1500V DC(IEC) |
| Operating Temperature | -40℃~+85℃ |
| Maximun Series Fuse | 30A |
| Static Loading | Sno w Loading:5400Pa/Wind Loading:2400Pa |
| Protection Class | Ⅱ |
| Fire Type | Class C(IEC) |
| Bifacial 80±5% | |
TEMPERATURE CHARACTERISTICS
| NMOT Temperature | 45℃±2℃ | |
| Temprature | Coefficient(Pmax) | -0.29%1℃ |
| Temprature | Coefficient(Voc) | -0.25%1℃ |
| Temprature | Coeficent (lsc) | 0.045%1℃ |

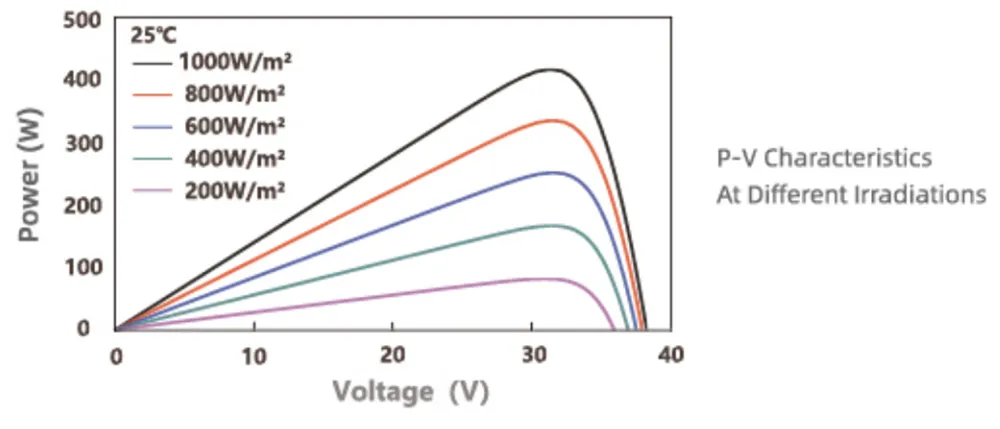

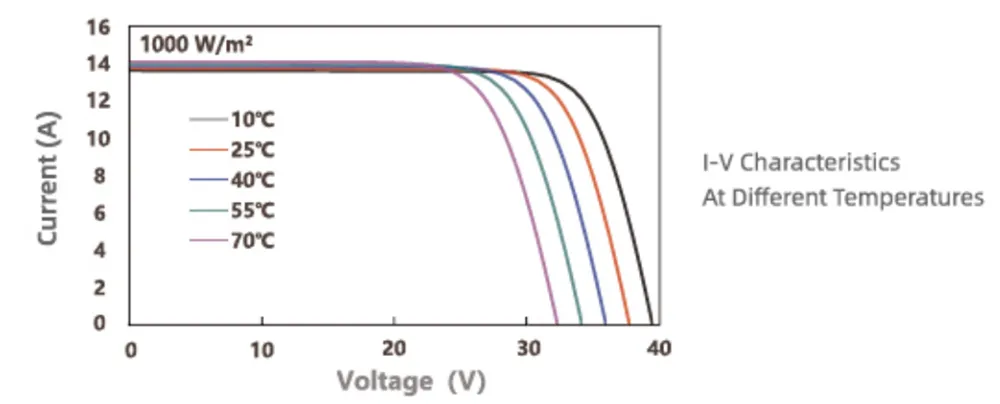

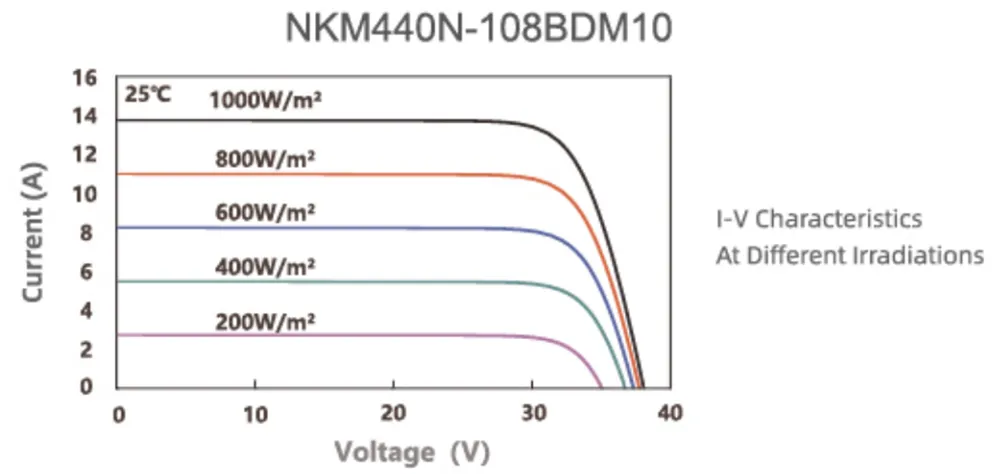

CURVE&TEMPERATURE DEPENDENCE
