LiON-96 N Type(210R) 440-460 Watt
Industry-leading Warranty based on nominal power
- 0.4% Annual Degradation over 30 Years
- 12 Year Product Warranty
- 30 Year Linear Power Warranty
Features
- SMBB Technology
Better light trapping and current collection to improve module power output and reliability. - Hot 2.0 Technology
The N-type module with Hot 2.0 technology has betterreliability and lower LID/LETID. - Excellent weak light performance
More power output in weak light condition, such as cloudy,morning and sunset - Extended wind and snow load tests
Module certified to withstand extreme wind (2400 Pascal)and snow loads (5400 Pascal) - PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. - Lower LCOE
Higher bifaciality,higher power output and lower BOS cost

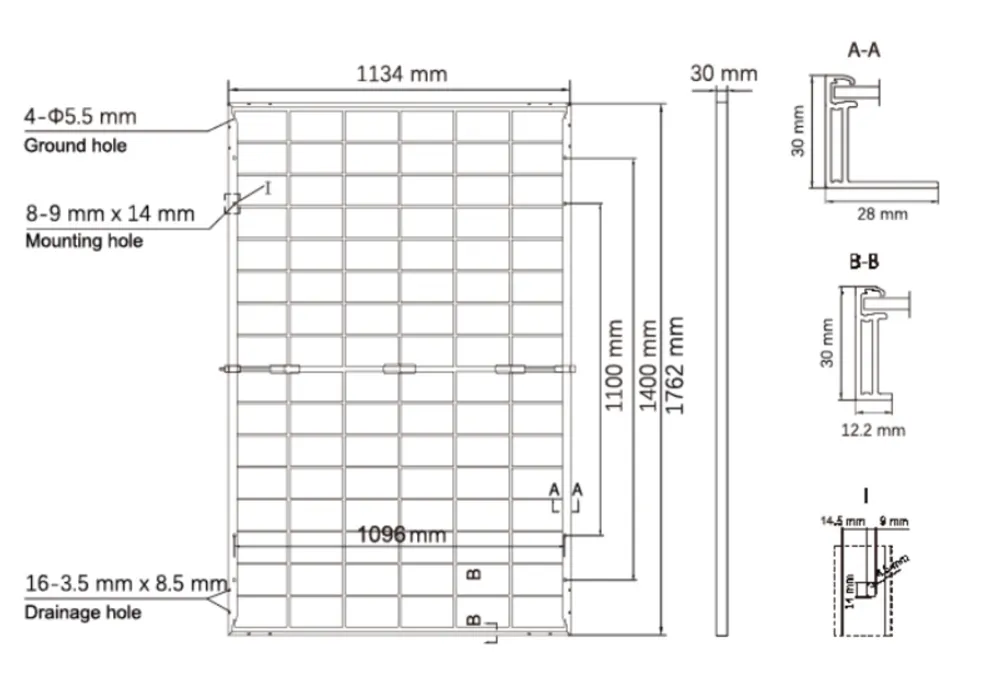

MECHANICAL SPECIFICATIONS
| Cell Type | N Type Mono-crystalline |
| Cell Arrangement | 96(6*16) |
| Weight | 24kg |
| Module Dimensions | 1762*1134*30mm |
| Cables | 4.0mm²,±300mm or Customized length |
| Front Glass | 2.0mm,Anti-Reflection Coating |
| Back Glass | 2.0mm,Heat Strengthened Glass |
| No.of Bypass Diodes | 3/6 |
| Packing Configuration | 36pcs/pallet,936pcs/40HQ |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 |
ELECTRICAL SPECIFICATIONS
| Module Type | LiON440N-96BDR12 | LiON445N-96BDR12 | LiON455N-96BDR12 | LiON455N-96BDR12 | LiON460N-96BDR12 |
| Testing Condition | STC | STC | STC | STC | STC |
| Rated output (Pmp/Wp) | 440 | 445 | 450 | 455 | 460 |
| Maximum Power Voltage(Vmpp/V) | 30.06 | 30.20 | 30.33 | 30.47 | 30.60 |
| Maximum Power Current(Impp/A) | 14.64 | 14.74 | 14.83 | 14.93 | 15.03 |
| Open Circuit Voltage(Voc/V) | 36.09 | 36.25 | 36.42 | 36.58 | 36.74 |
| Short Circuit Current(Isc/A) | 15.47 | 15.57 | 15.68 | 15.78 | 15.88 |
| Module efficiency(%) | 22.00% | 22.30% | 22.50% | 22.80% | 23.00% |
| Power Tolerance (W) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 |
| STC: Irradiance 1000W/m², Cell Temperature 25°C, AM=1.5 | |||||
Get Free Quote of LiON-96 N Type(210R) 440-460 Watt
BNPI
| Rated Output(Pmpp/Wp) 488 | 493 | 498 | 504 | 509 |
| Rated Voltage (Vmpp/V) 30.06 | 30.20 | 30.33 | 30.47 | 30.60 |
| Rated Current(Impp/A) 16.22 | 16.33 | 16.43 | 16.54 | 16.65 |
| Open Circuit Voltage (Voc/V) 36.09 | 36.25 | 36.42 | 36.58 | 36.74 |
| Short Circuit Current (Isc/A) 17.14 | 17.25 | 17.37 | 17.48 | 17.59 |
Irradiance: front 1000W/m², rear 135W/m², Cell Temperature 25°℃, AM=1.5
MAXIMUM RATINGS
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40℃~+85℃ |
| Maximun Series Fuse | 35A |
| Static Loading | Snow Loading:5400Pa/Wind Loading:2400Pa |
| Protection Class | IⅡ |
| Fire Type | Class C(IEC) |
| Bifacial | 80±5% |
TEMPERATURE CHARACTERISTICS
| NMOT Temperature | 45±2℃ | |
| Temprature | Coefficient(Pmax) | -0.29%/C |
| Temprature | Coefficient(Voc) | -0.25%/C |
| Temprature | Coefficient (Isc) | 0.043%/C |

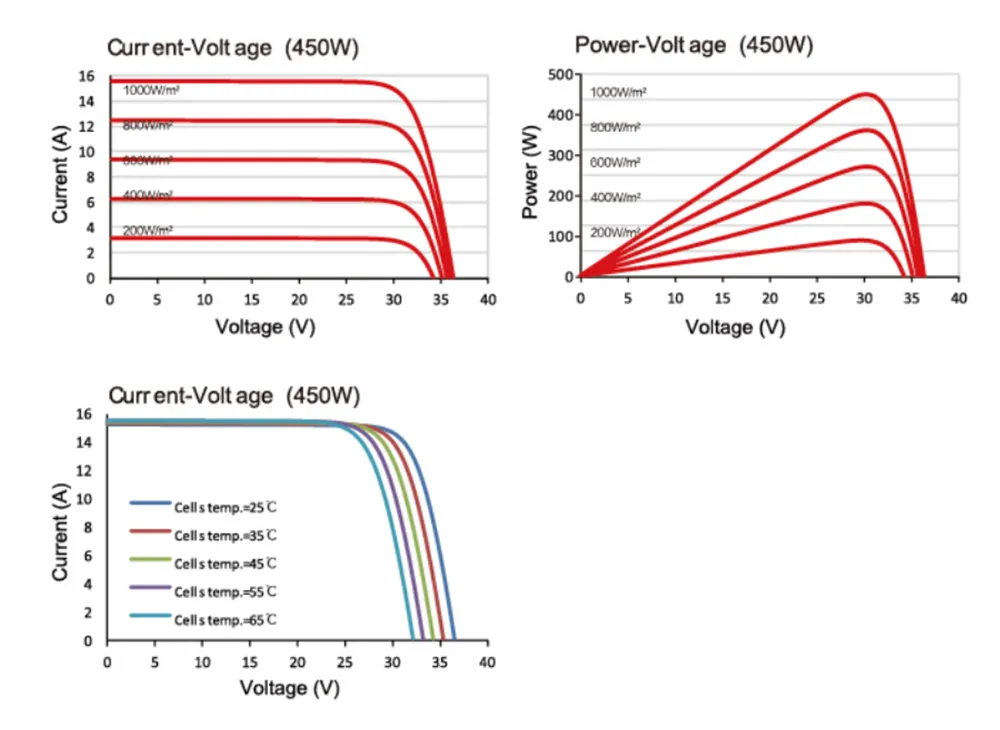

CURVE &TEMPERATURE DEPENDENCE
