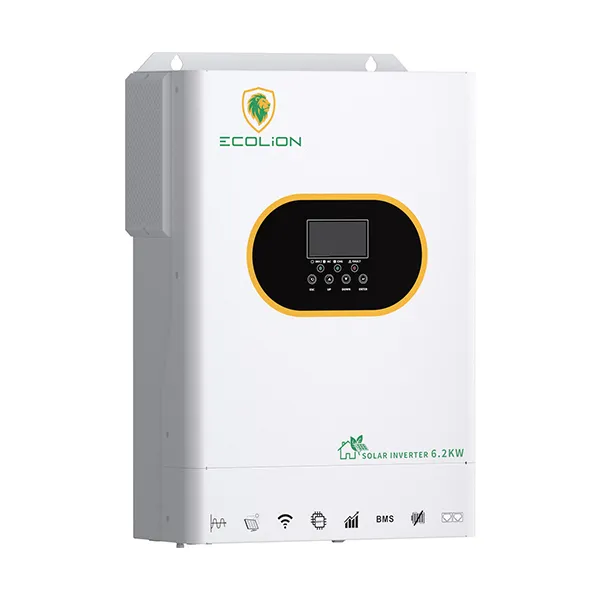

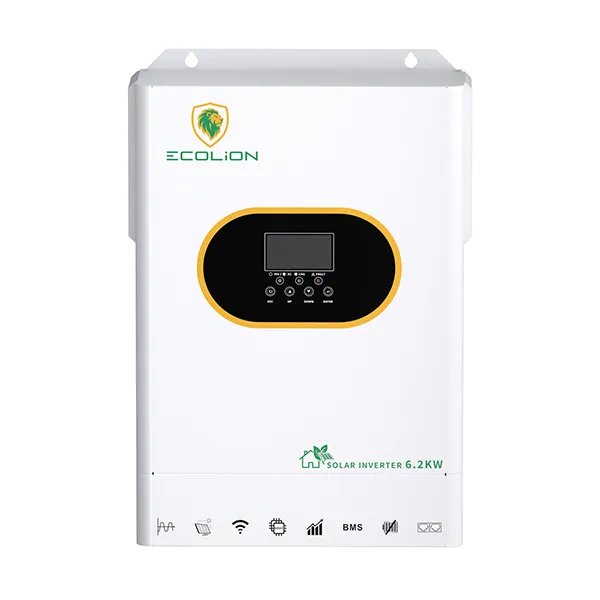

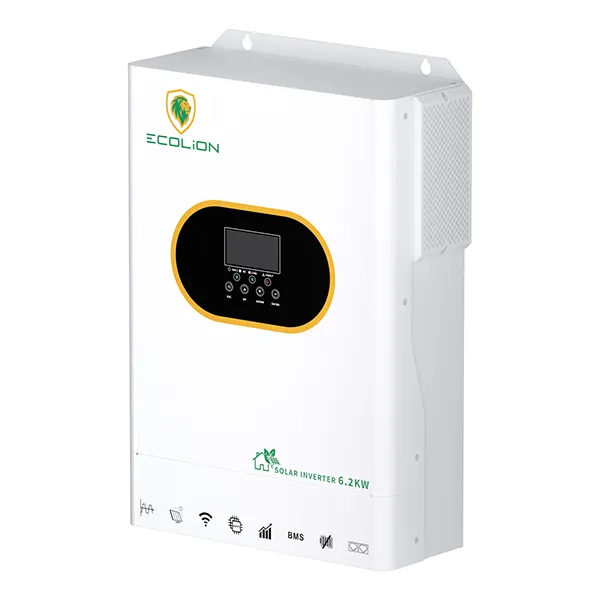

Off-grid Inverter ECOLiON-6.2KW
- Lithium battery activation function by PV or Utility
- Compatible work with lifepo4 battery via RS485
- Pure sine wave
- Power factor 1.0
- PVinput Voltage 60Vdc-500Vdc
- Built-in MPPT60A/100A/120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- WlFl remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUBEO function to optimize battery performance and extend lifecycle
Technicle Specifications
| Capacity | 6.2KVA/6.2KW |
| Parallel Capability | NO |
| Lithium Battery Activation | YES(By PV or Utility) |
| Lithium battery Communication | YES(RS⁴85) |
| Built-in WiFi | Optional |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) |
| Frequency | 50/60Hz(Auto sensing) |
| Nominal Voltage | 220/230VAC+5% |
| Surge Power | 12400VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency(PVto INV) | 96% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload ProtectionCrest Factor | 5s@>=140%load;10s@110%~140%load |
| Admissible Power Factor | 3:01 |
| Admissible Power Factor | 0.6~1(inductive or capacitive) |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC/CV |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 6500W |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~500VDC |
| Max.Solar Input Current | 27A |
| Max.Solar Charge Current | 120A |
| Max.AC Charge Current | 80A |
| Max.Charge Current(AC+PV) | 120A |
| Dimensions,DxWxH | 438*295*105mm |
| Package Dimensions,DxW×H | 560*375*185mm |
| Net Weight | 9Kg |
| Communication Interface | RS232+RS485 |
| Operating Temperature Range | (-10’℃ to 55°℃) |
| Storage temperature | (-15°℃~60℃℃) |
| Humidity | 5%to 95%Relative Humidity(Non-condensing) |
| Ingress Protection | IP21 |
